WELL-ROUNDED ACCESSORIES FOR POOL’S SPORTS
A pool is not finished until it’s complete with all the right accessories. On ourdays market it’s possible to find many of it and for different purposes. The accessories can be considered both the added aesthetic value of the pool, but they are also an essential part of the structure itself and must guarantee beauty, but also stability and safety.
Magnificent & functional competition pools
Ball Release System
Movable Bulkhead to manage space

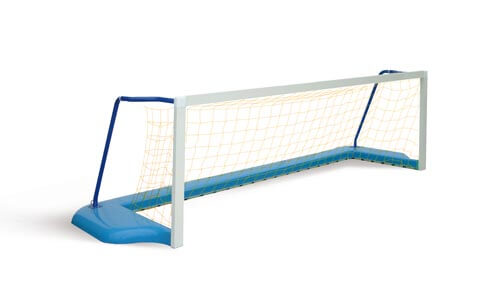

Water Polo Goals with base in fiberglass, poles and crossbar in painted aluminium
Floating Lanes minimize the movement of the water

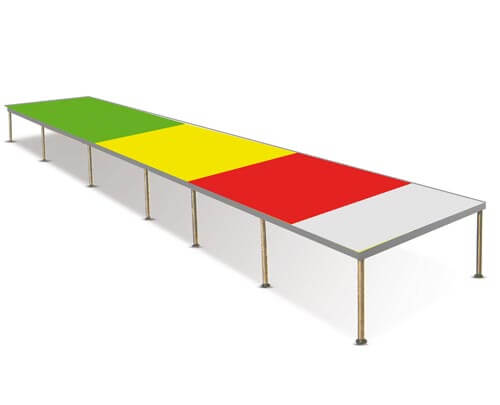

Water Polo Referee Platform
Benches for players
Waterpolo & Synchronized swimming

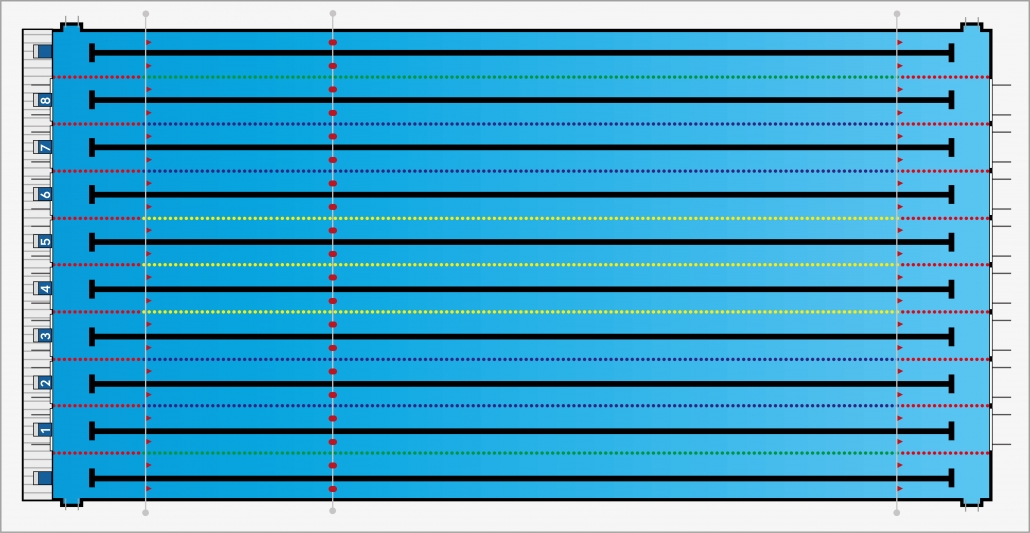

The minimum size for an olympinc swimming pool in compliance with FINA regulations – that can host the discipline of male/female waterpolo and synchronized swimming for international competitions – is 33,33 x 21 mt or 34,83 x 21 mt. The addition of the 1,50 mt long movable bulkhead makes the pool multi-purpose.

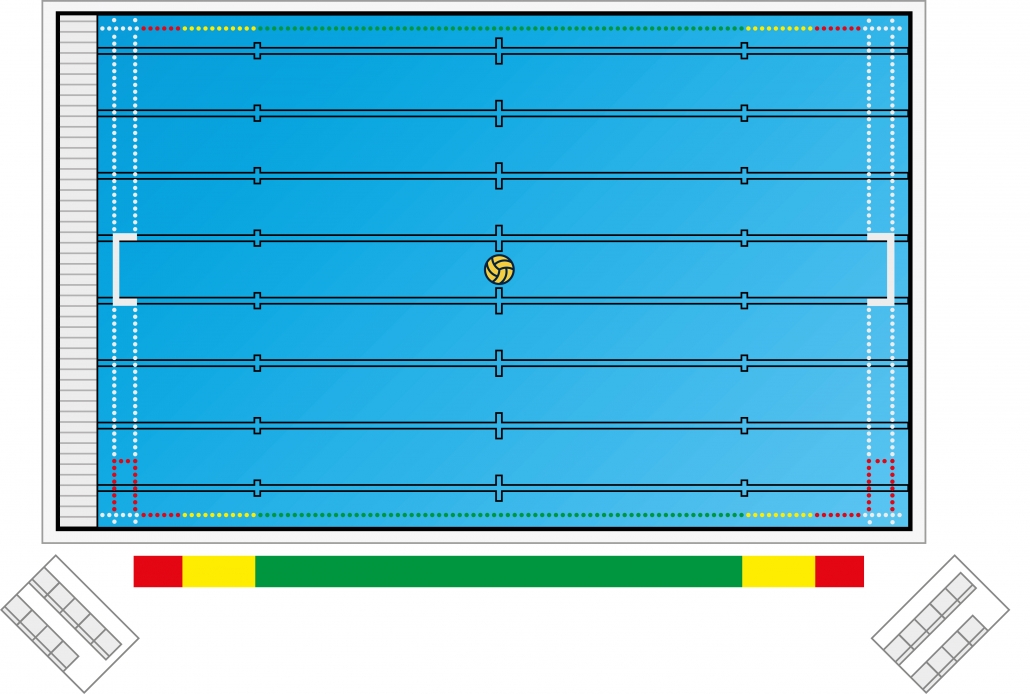

The dimensions of the male competition area are 20 x 30 mt, within which an area of 12 x 12 mt must have a minimum depth of 3 mt. The rest of the area can be minimum 2,50 mt deep.

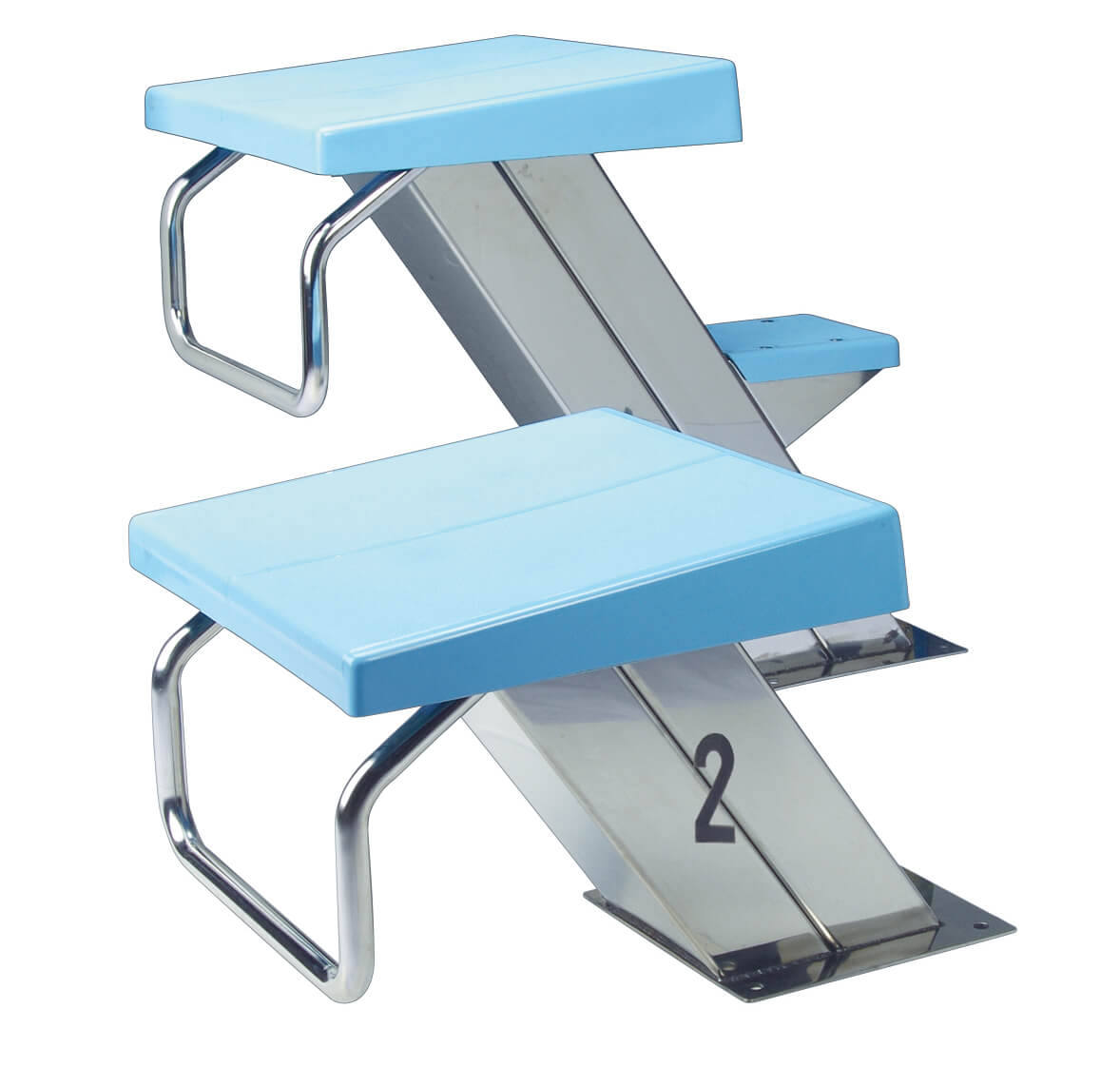

Starting Blocks
Backstroke Turn Indicators
Floating Lanes

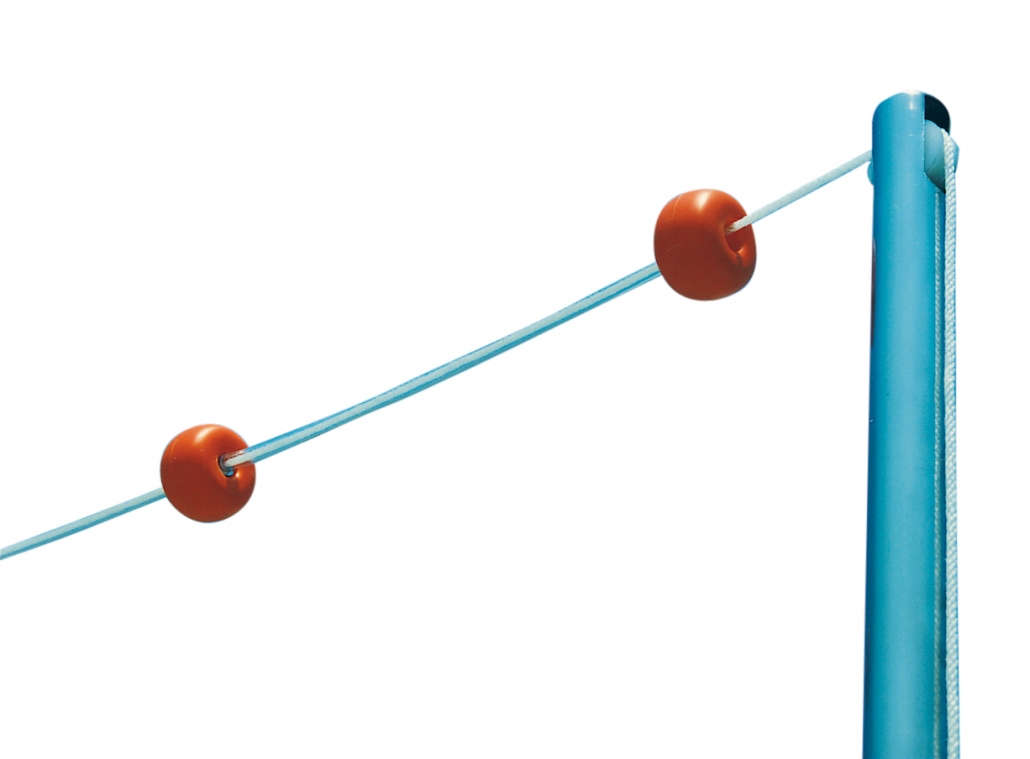

False Start Indicators

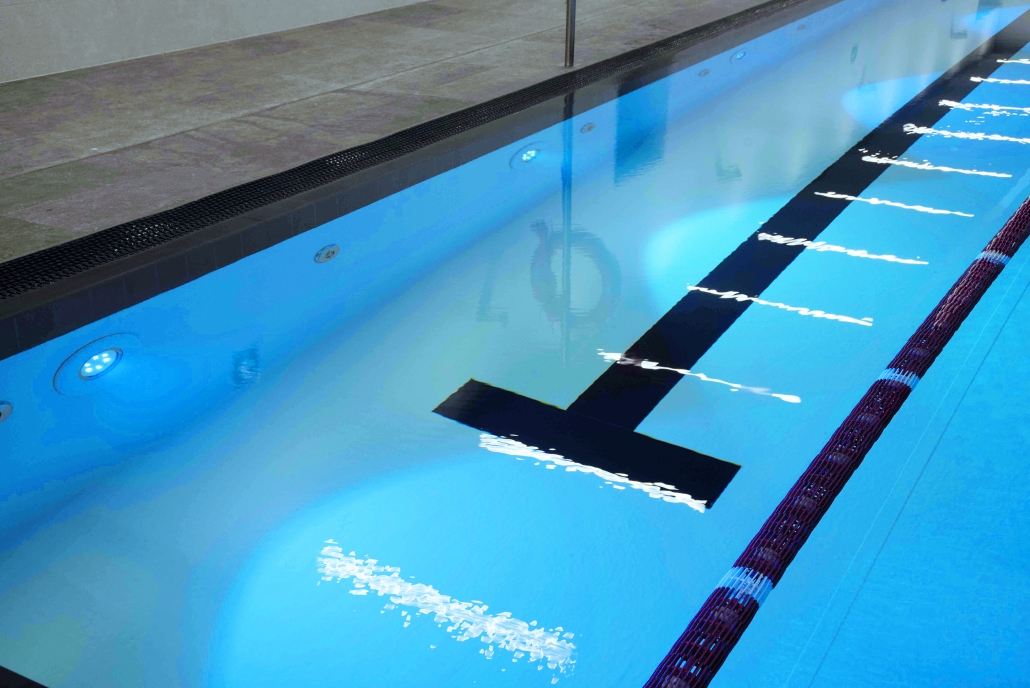

Bottom Black PVC Lanes Markings
Recessed Ladder

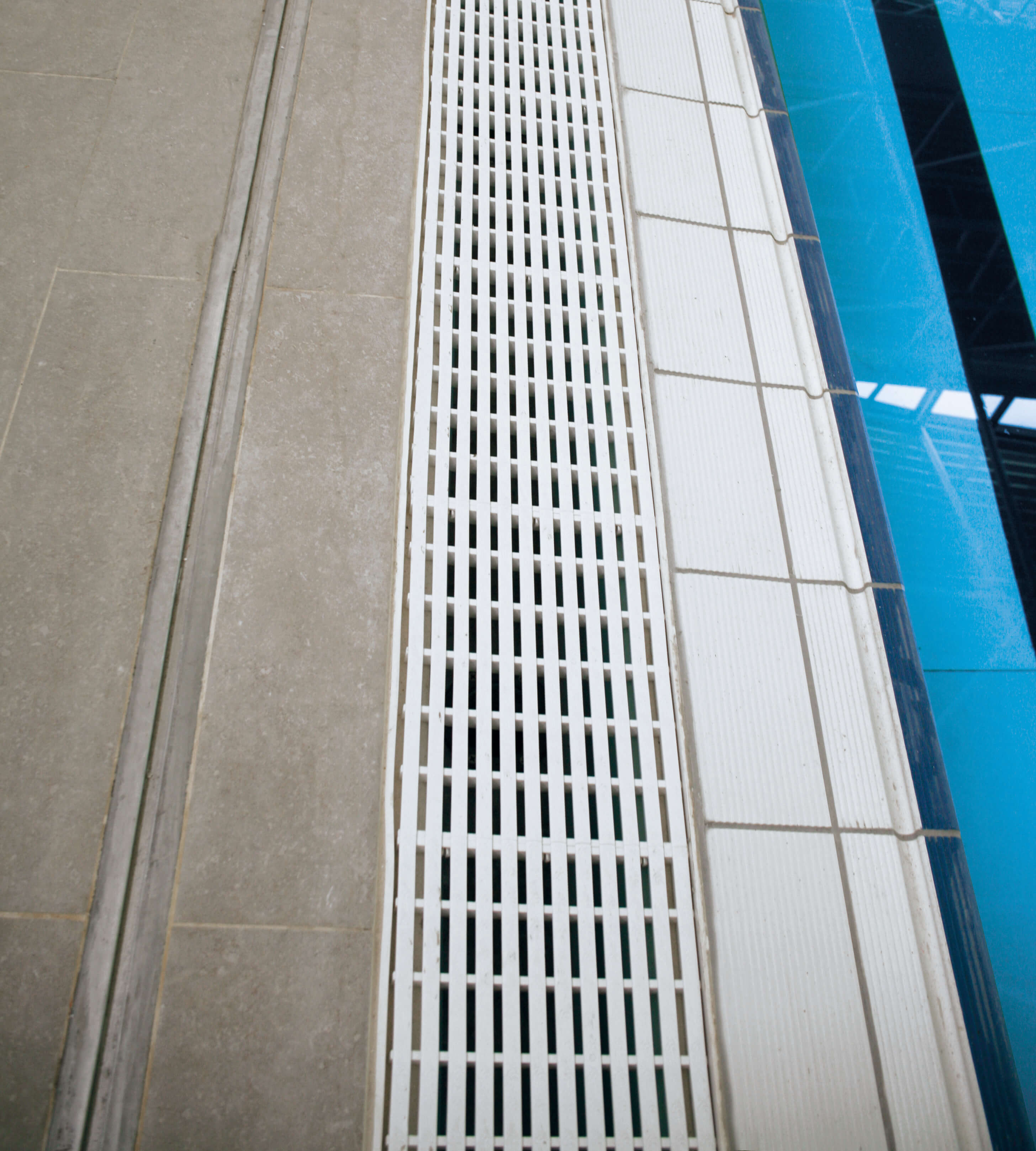

Pool Edge

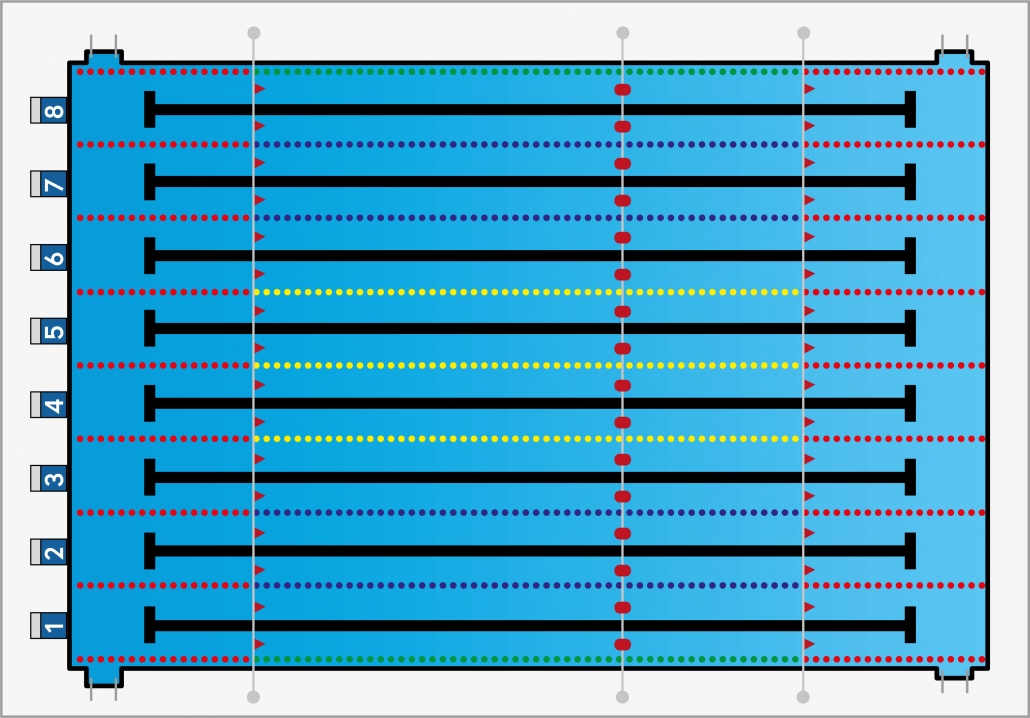

Semi-olympic pool
This is a semi-olympic pool outline for national swimming competitions. With the size of 16,50 x 25 mt the semi-olympic pool is ideal for hosting all the major national swimming competitions. It consists of 8 lanes, 2 mt wide each, which extend over the entire length of the pool with special bottom signposting, and it’s equipped with floating lanes with regulatory colors, false start indicators and backstroke indicators.

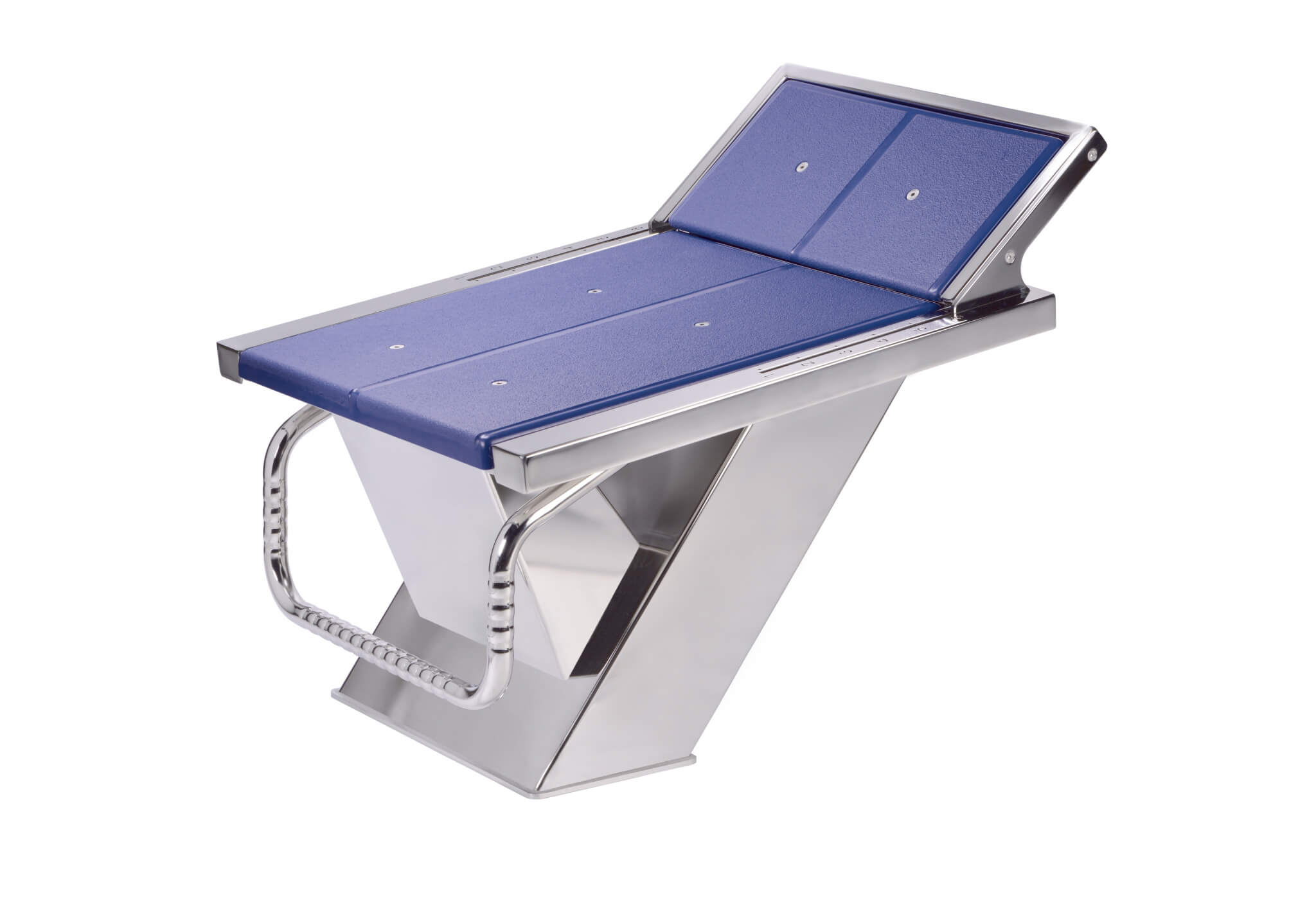

Starting Block designed for competitions

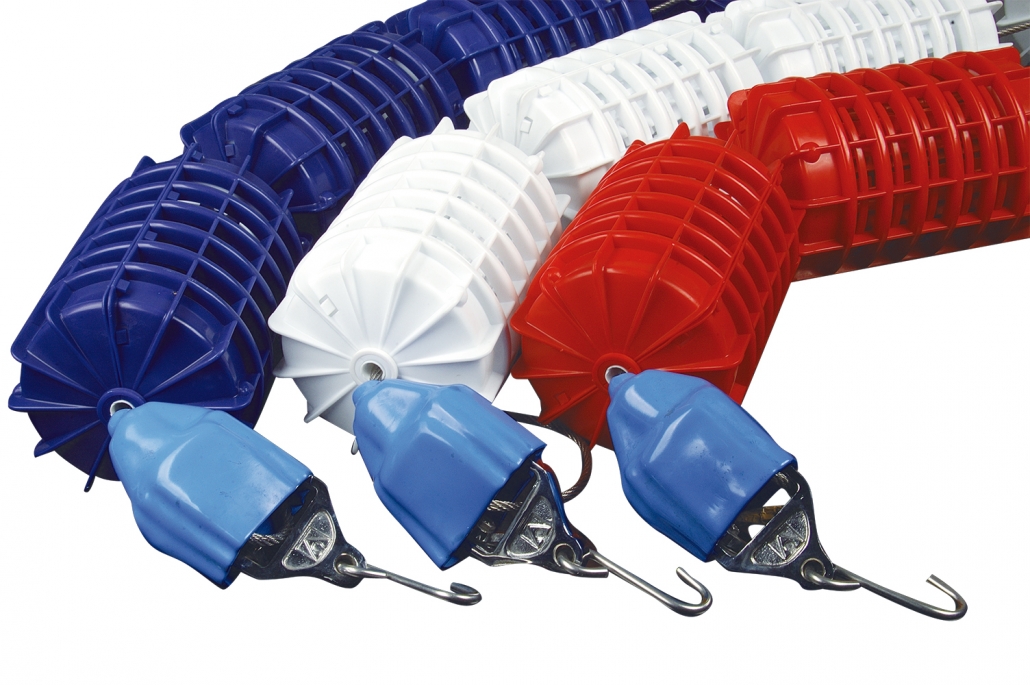

Floating Lanes minimize the movement of the water between athletes
Movable Bulkhead to manage space

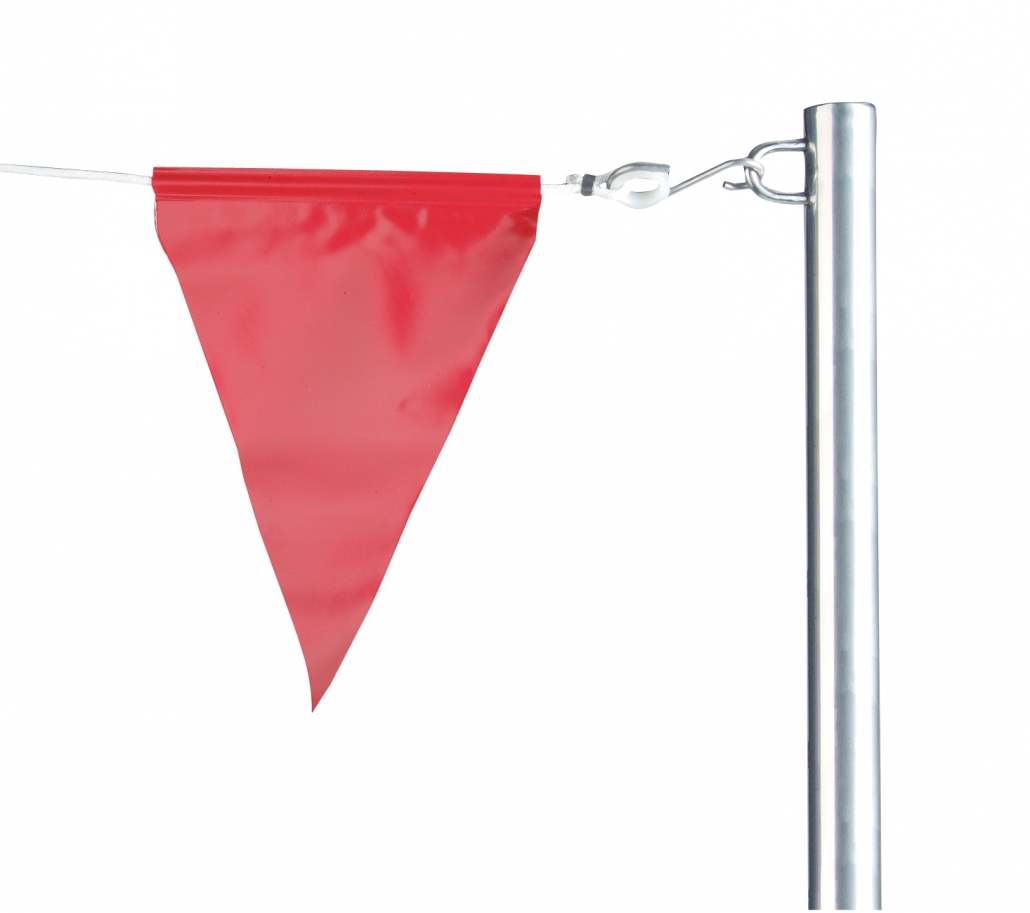

Backstroke Turn Indicators with flags and polyester rope
False Start Indicators with polyester sliding and floats
Bottom Black PVC Lanes Markings

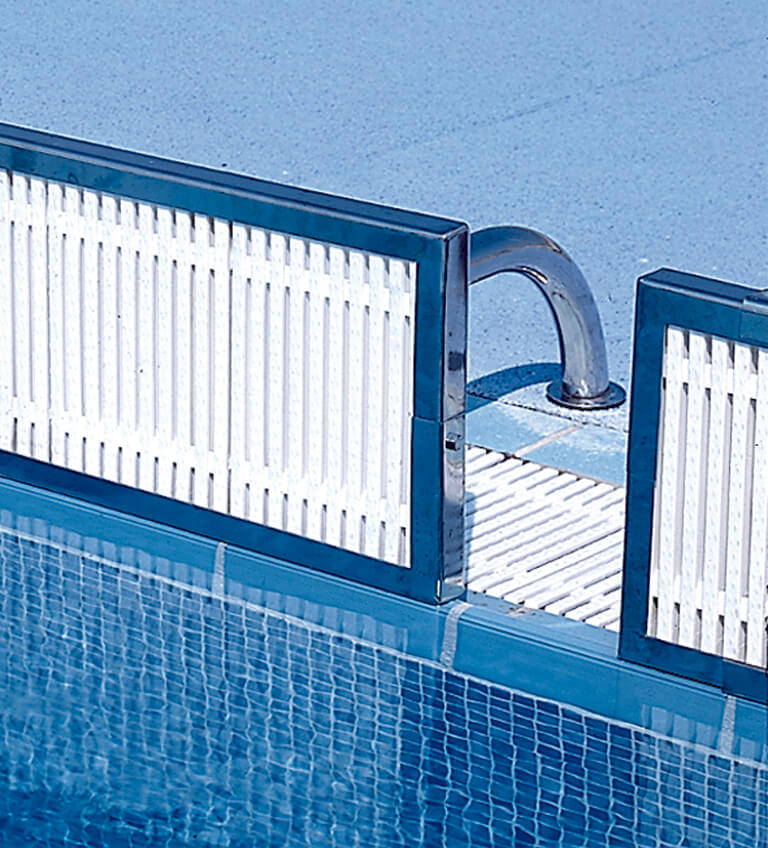

Turnin Panel allows the athlete to make a correct and safety turn

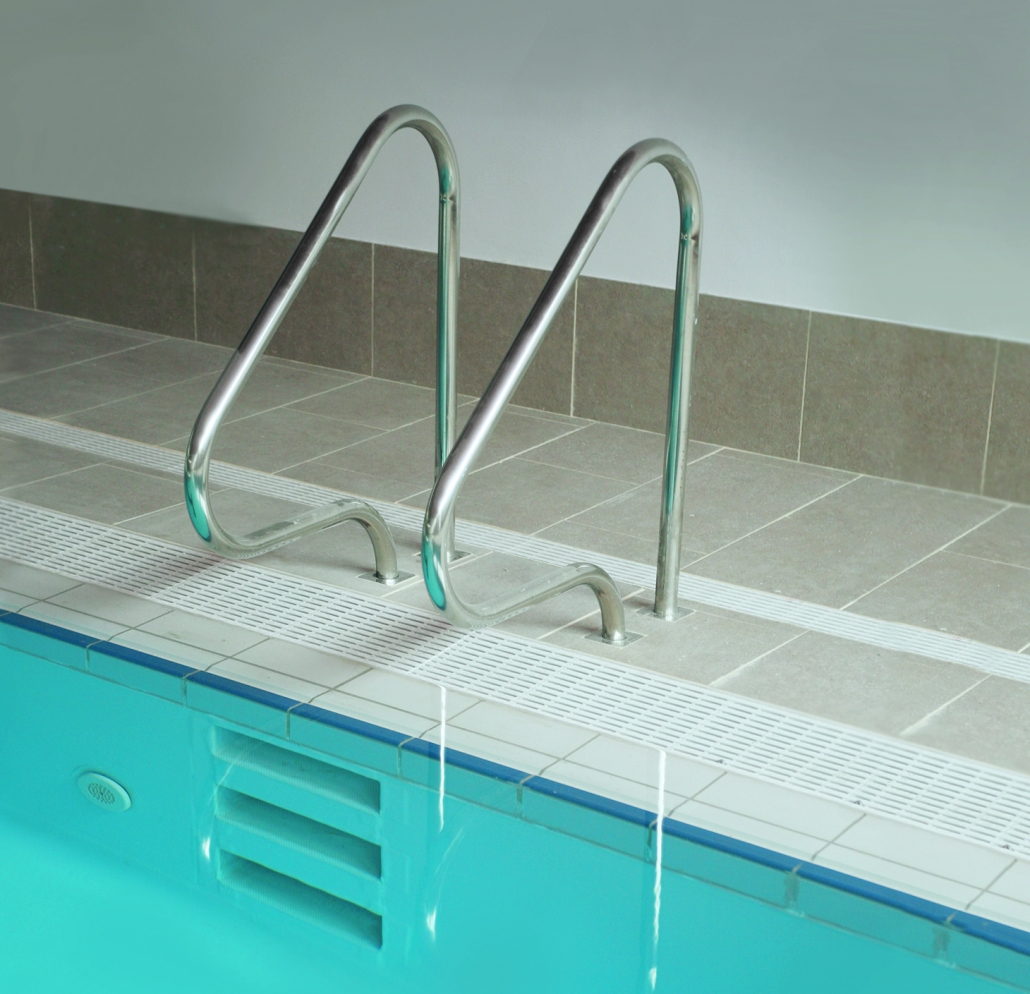

Recessed Ladder
Recessed Ladder
Olympic pool
The Olympic pool for international competitions is the highest expression of technology and precision. With dimensions of 51,50 x 25 mt and movable bulkhead of 1,50 mt, it’s equipped with all type of accessories to comply with the strict FINA regulations. Consisting of 10 lanes of 2.5 mt each, it has to be minimum 2 mt deep.
Sparger System

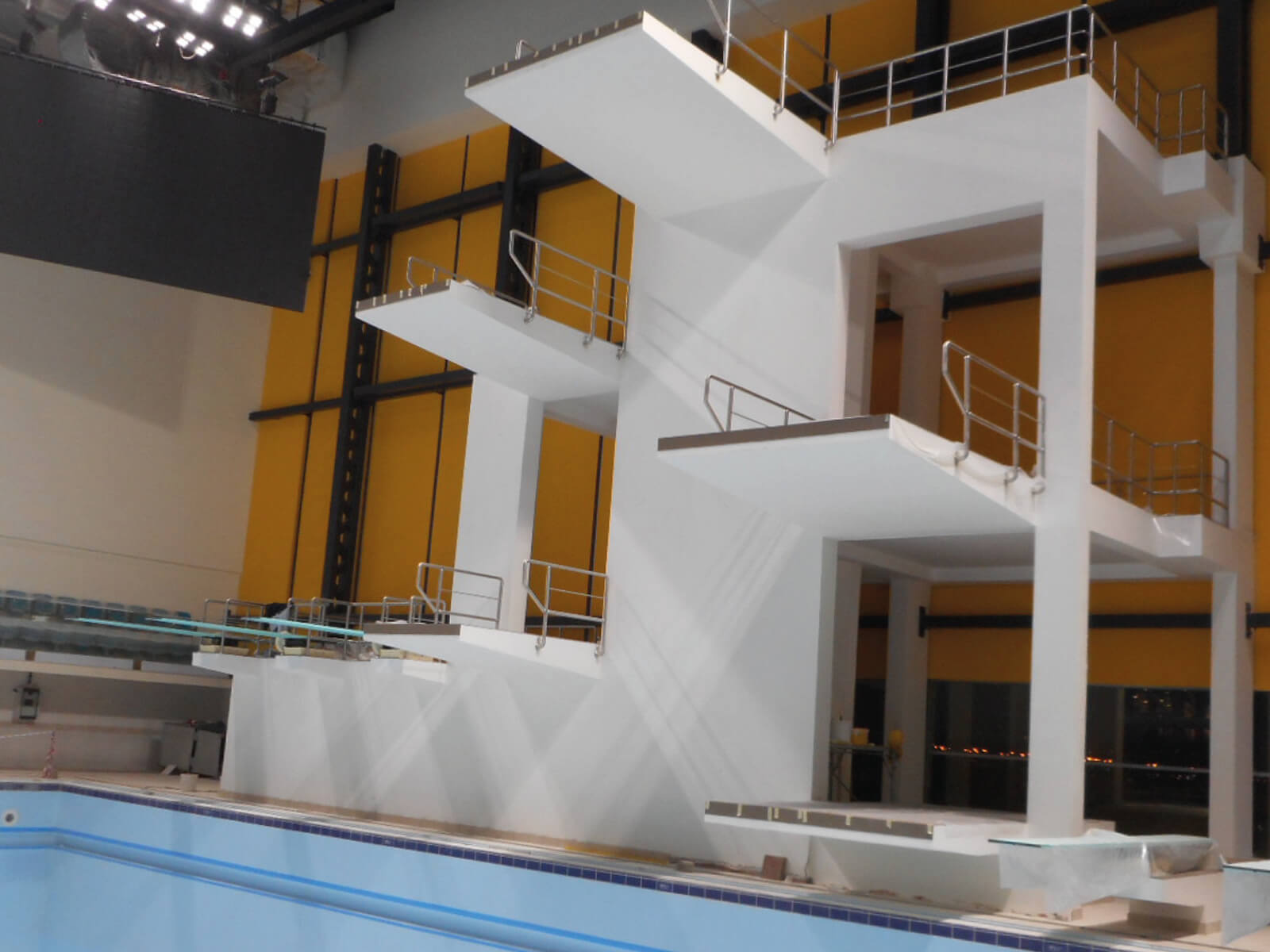

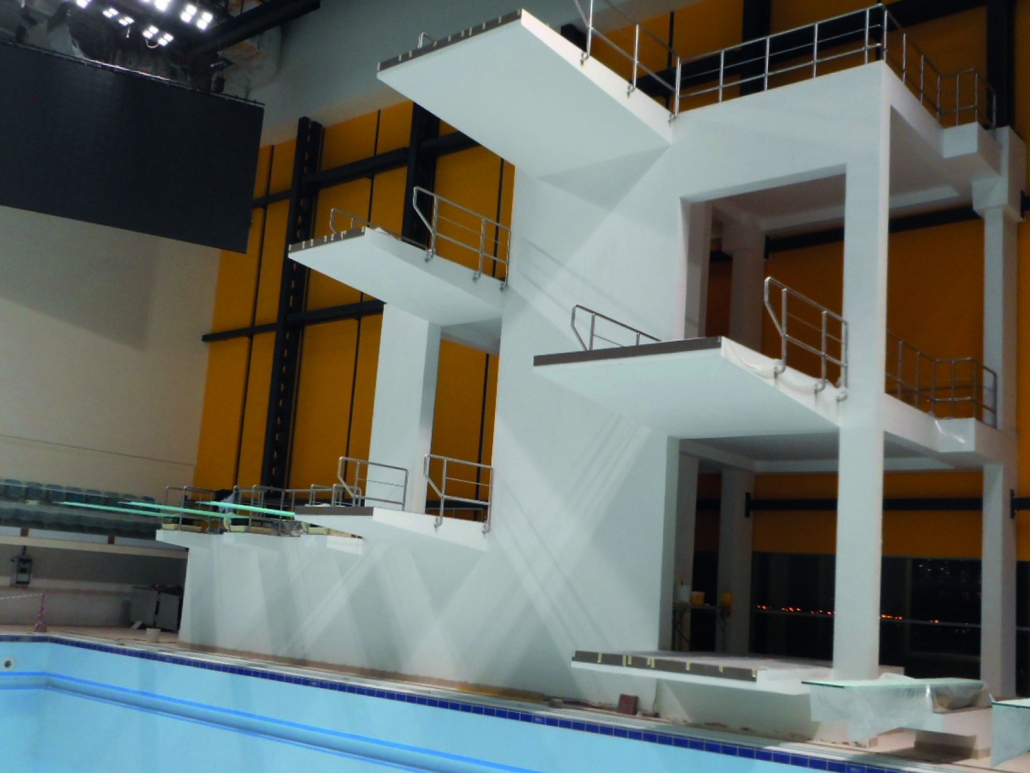

Diving Platform

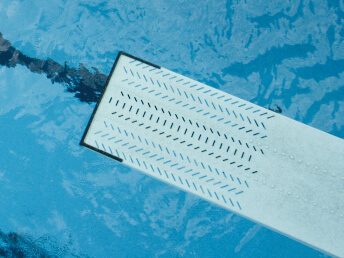

Diving Board
Diving pool
Diving pool has to be minimum 25 x 25 mt with a minimum depth of 1,80 up to 4,50 mt needed for the dives from 10 meters platform. The structure of the platform is homologated respecting the dimensions and heights required by FINA regulations. It’s necessary to install a water stirrer to make the water surface visible to the athlete in the moment of the execution of the dive. It’s also possible install the Sparger System which generates an air cushion inside the pool that creates bubbles which act as airbags for athletes when they are entering into the water.
Special equipment
Movable bulkhead

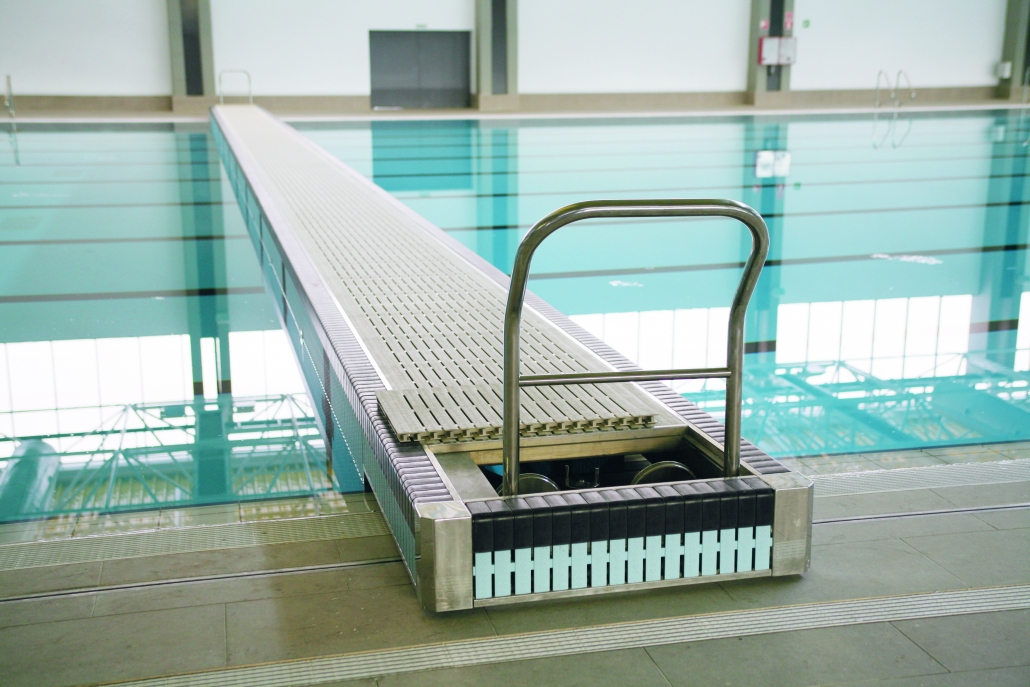

MOVABLE BULKHEAD TO MANAGE SPACE

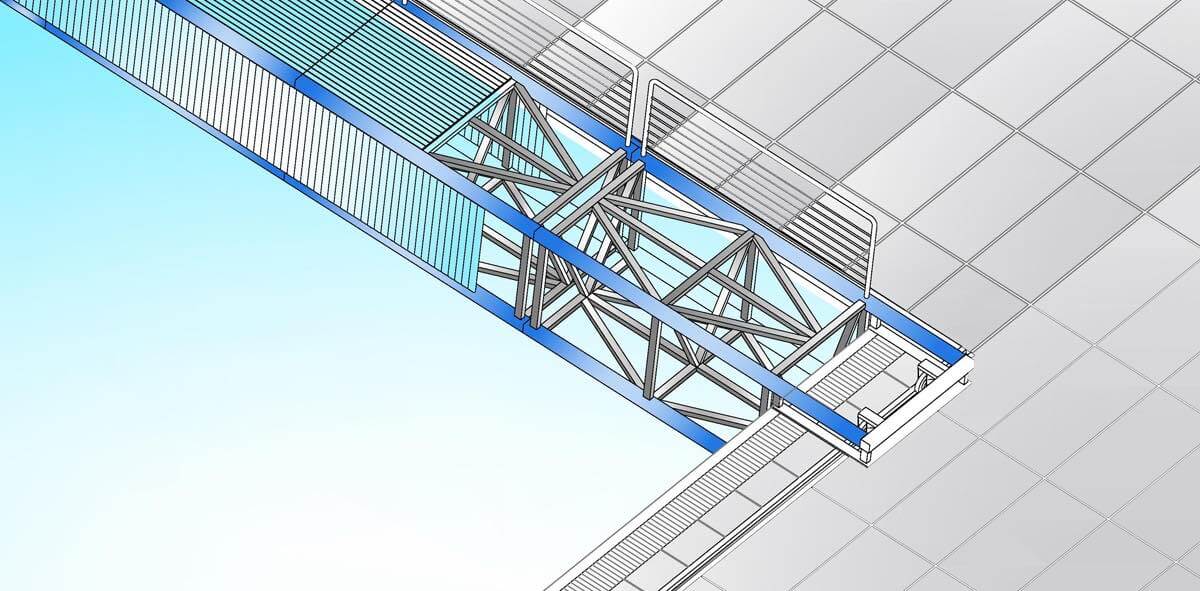

The use of movable bulkhead has become essential to independently manage of the olympic swimming pool’s space with the FINA standards, thus being able to host more sports in the same pool. Thanks to this system it’s possible to increase or decrease the length of the pool, differentiating the final use, for example among waterpolo, synchro and competitive swimming. Made of a steel structure that rests on wheels along the edge of the pool following guides parallel to the side of the pool. The movement system of the structure can be manual or motorized with radio control connected to an electric motor that activates the movement. The bulkhead is equipped with anchors for the starting blocks, turning panels and entirely covered in polypropylene grids to make it safe in when contact with the athletes.
Starting Blocks
Backstroke Turn Indicators
Floating Lanes
False Start Indicators
Bottom Black PVC Lanes Markings
Recessed Ladder
Pool Edge
Movable Floor
MANAGE DIFFERENT DEPTHS IN THE SAME POOL
Born to use the pool for various activities at a variable water level. It consists of an assembly of spatial reticular beams made of stainless steel profiles welded to each other and, in turn, connected and braced together so to create a homogeneous and resistant base. The structure is connected to the edge of the pool through angles designed from time to time that contain the safety mechanisms of the bottom, all is made of stainless steel, so to obtain a movable floor to be positioned according to the necessities. It also has one or more hatches for regular pool cleaning, maintenance and inspection of the entire structure and handling systems.
Starting Block designed for competitions
Floating Lanes minimize the movement of the water between athletes
Movable Bulkhead to manage space
Backstroke Turn Indicators with flags and polyester rope
False Start Indicators with polyester sliding and floats
False Start Indicators with polyester sliding and floats

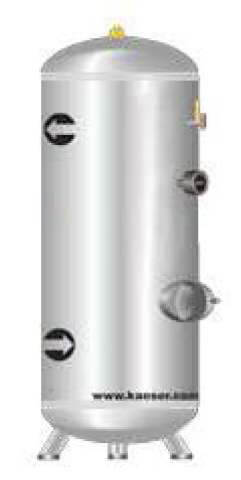

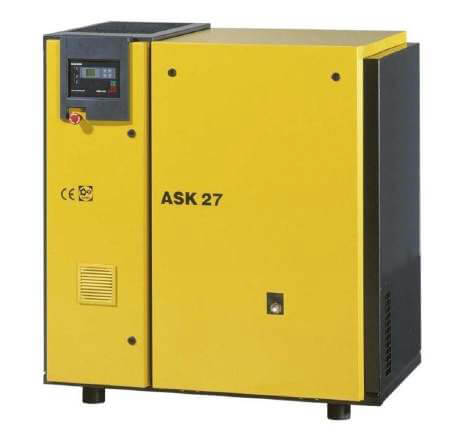

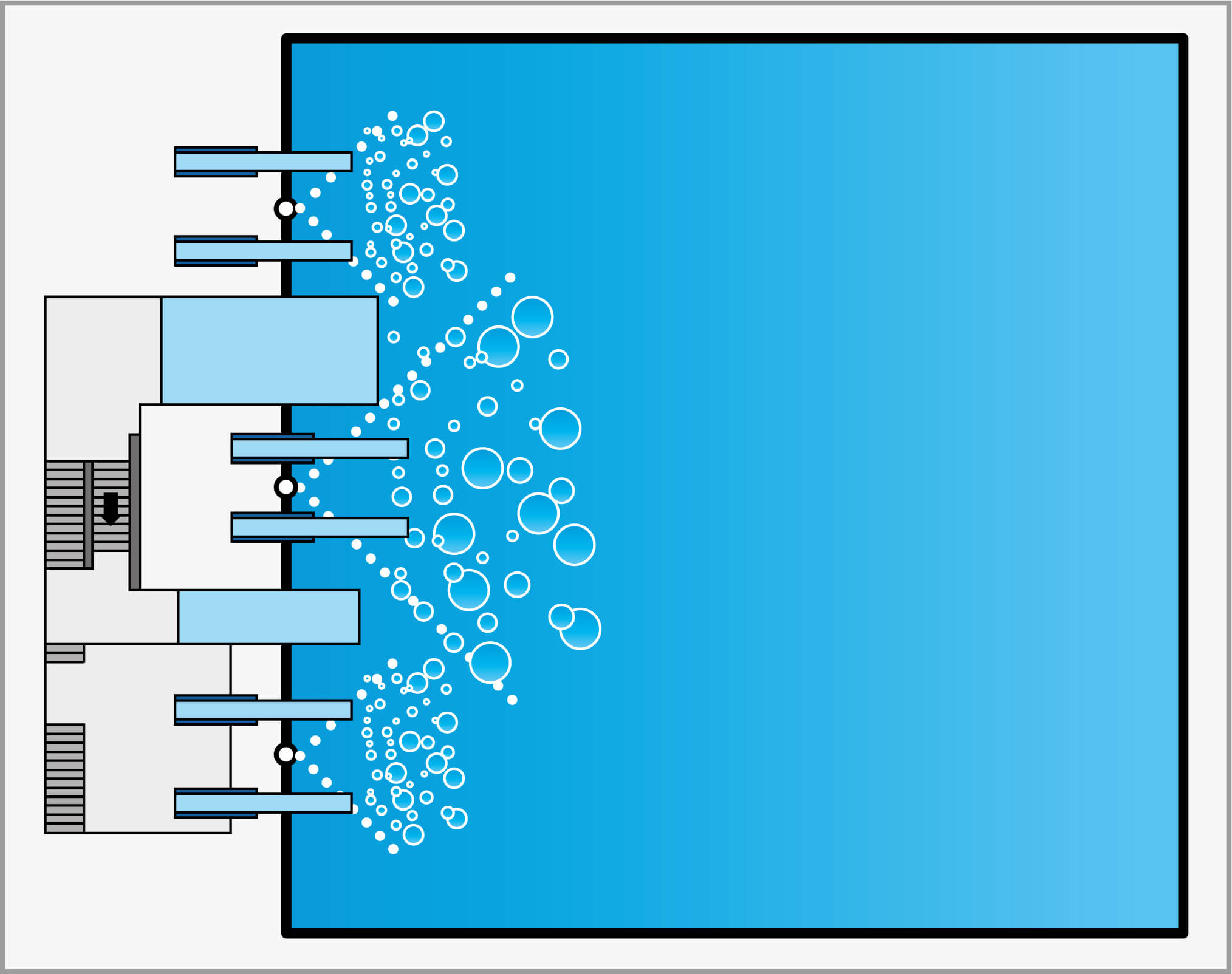

Sparger System
AIR SYSTEM FOR WATER MOVEMENT

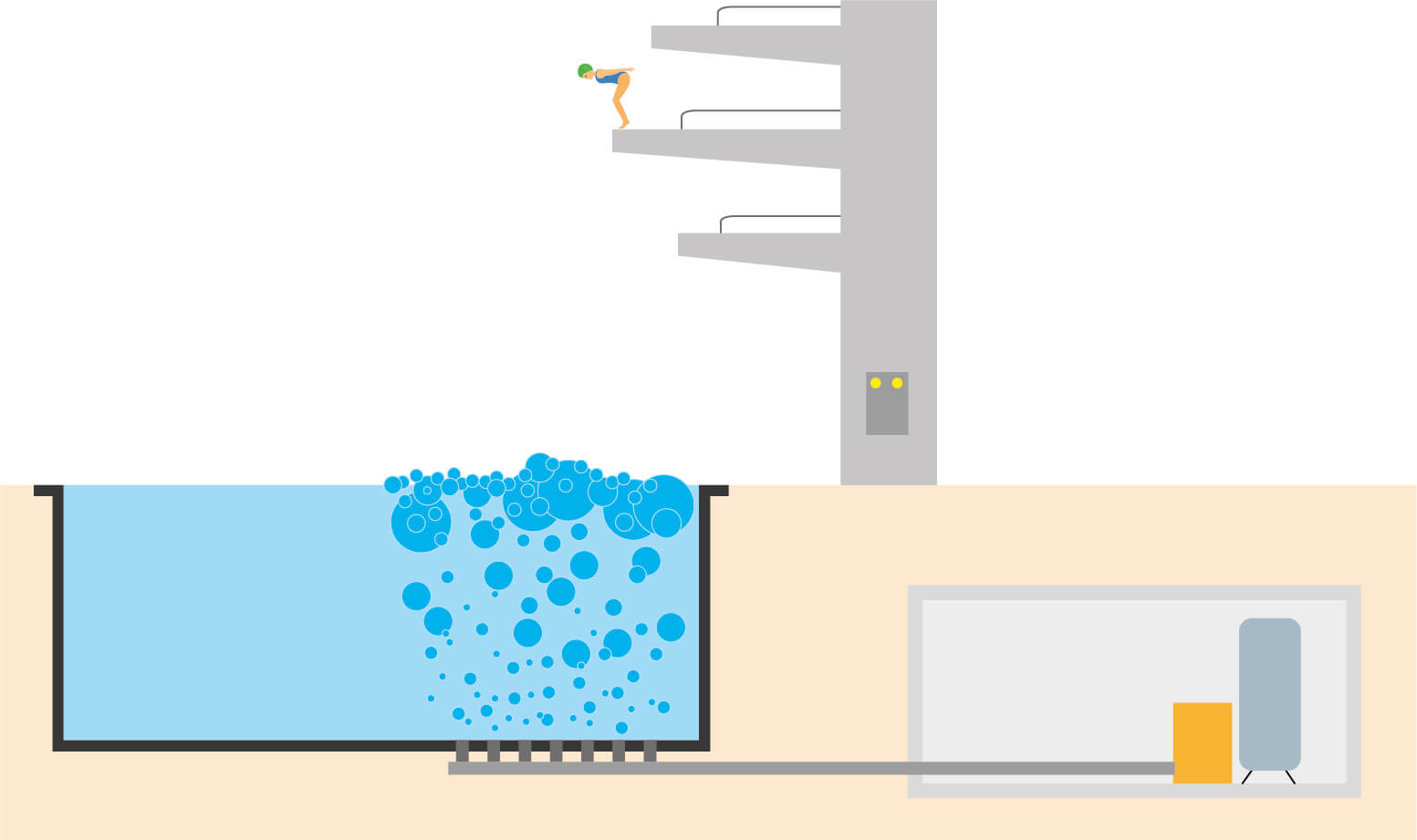

This system has been created to generate a uniform mixture of air and water at the point of impact off the dive. A system of diffusers installed at the bottom of the pool, located along each spring board, creates a system of micro-bubbles controlled by the trainer, achieving the effect of an airbag in order to ‘protect the diver. Thanks to this cushion of air/water, the athlete can concentrate on the execution of the dive reducing to a minimum the risk of an injury.
